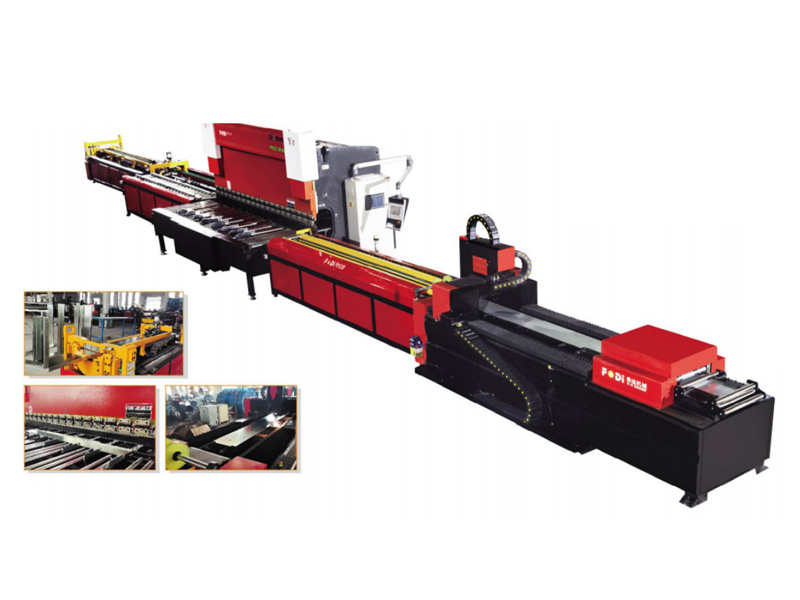

Universal Fire Damper Auto Line:Adjustable Flange Height/Nalve Width,Laser-Cut Custom Holes,Hydraulic Bending for Superior Straightness&Flatness vs Roll Forming
Main Performance Features
Powerful Valve Frame Nesting Software:A customized nesting program tailored to current air valve manufacturing processes.It
supports the machining ofall processes for riveted valves,welded valves,inserted valves,and positive pressure air supply outlets, with simple and easy-to-learn operation.Operators only need to modify the dimensions in the template dialog box,and the software automatically generates NC codes for the valve frame holes to be machined.
High-Speed Laser Hole Cuting:The system automatically identifies the codes generated by the nesting software for seamless
cutting.It features fast speed,smooth cross-sections,and bur-frefinishes.This effectively overcomes the drawbacks of traditional die punching,such as frequent die breakage and surface indentations.
Electro-Hydraulic Servo CNC Press Brake:Fast positioning is achieved via front and rear manipulators.The fully closed-loop
electro-hydraulic servo system controls the synchronous and rapid downward bending of the brake blade,resulting in flanges with excellent straightness,no indentations,and small bending radii(R angles).
Flexible Machining:Meets diverse market demands for valves with varying material thicknesses,valve frame thicknesses,flange types,and height dimensions.
High Precision:Full losed-loop control ensures hole pitch error of±0.3mm,length error of ±0.5mm,and diagonal error of±1mm.
High Eficiency:The continuous order modeallows customers to input multiple order data sets at once (supporting up to 100 orders) for uninterrupted production.Zero material waste is generated during order switching.
Material:Galvanized sheet:1.2-2.0 mm
Coil Width:Customized per customer requirements
Coil Weight:≤3,000 kg
Forming Line Speed:Adjustable from 1-15m/min
Valve Body Length Error:±0.3 mm/1,000 mm Hole Position &Pitch Error:±0.3mm/1,000 mm Flange Straightness Error:±0.3 mm/1,000 mm
Valve Body Bending Error:±0.5 mm/1,000 mm

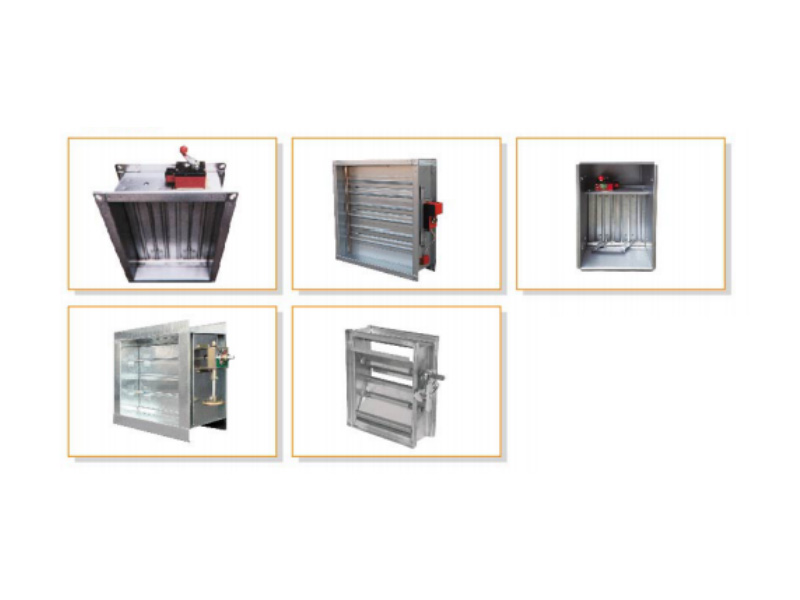

Processable Valve Types:Riveted valve/welded valve /inserted valve/positive pressure air supply outlet
Processable Flanges:Common plate flange:30-50 mm adjustable/angle steel flange:30-50 mm adjustable
Processing Modes:Cutting/single-piece processing/square-frame processing/L-frame processing/U-frame processing
Control Mode:Industrial computer/PLC
Main Power Supply:380 V,50 Hz,3-phase
Hydraulic System Pressure:25 MPa;Working Pressure:8-12 MPa
Equipment Overall Dimensions:Approx.25,000×3,200×4,500 mm(L×W×H)
Total Equipment Power:40 KW
Equipment Weight:Approx.16,000 kg
Production Efficiency:400-500 frames per 8 hours
Valve Body Specifcations:Minimum size (L-shaped valve body):120×120 mm;Maximum perimeter(square-shaped valve body):
