Product Description

Basic Configuration

1.Non-Powered Feed-in Rack(Qty:1)

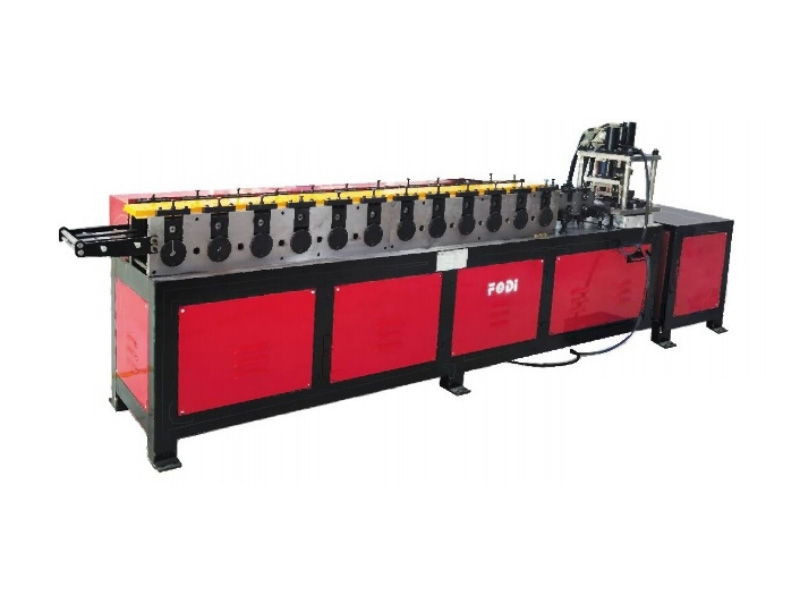

2.Main Support BarForming Machine (Qty:1)

3.Hydraulic Cutting Device(Qty:1)

4.Automatic Punching Device (Qty:1)

5.Feed-out  Platform(Qty:1)

6.CNC Control System(Qty:1)

7.Hydraulic System(Qty:1)

Parameter

technical parameter

Plate Thickness

Galvanized Sheet,1.5-2.0mm

Material Weight

≤2000kg

Line Speed

≤15m/min,Adjustable

Plate Length Error

±0.5mm/m

Punch Centerline Error

±0.3mm/m

Controlling

Panasonic PLC,Japan

Electric Elements

First-rate Brand In China Or Other Countries

Dimensions

4000x1000x1200mm

Total Weight

1800kg

Total Power

9kw
