Auto square air duct line 6 machine U shape

Auto Square Air Duct Line 6

The Auto Square Air Duct Line 6 is specifically designed for the efficient processing of standard square air ducts. With a simple input of duct dimensions, this advanced production line automatically handles every step of the manufacturing process, including decoiling coiled material, leveling, compacting, length measuring, punching square openings, fixed-length shearing, joint angle nipping, and hydraulic folding of both double-sided angle steel flanges and common plate flanges. All procedures are completed with just 1-2 operators monitoring the operation.

Key Features:

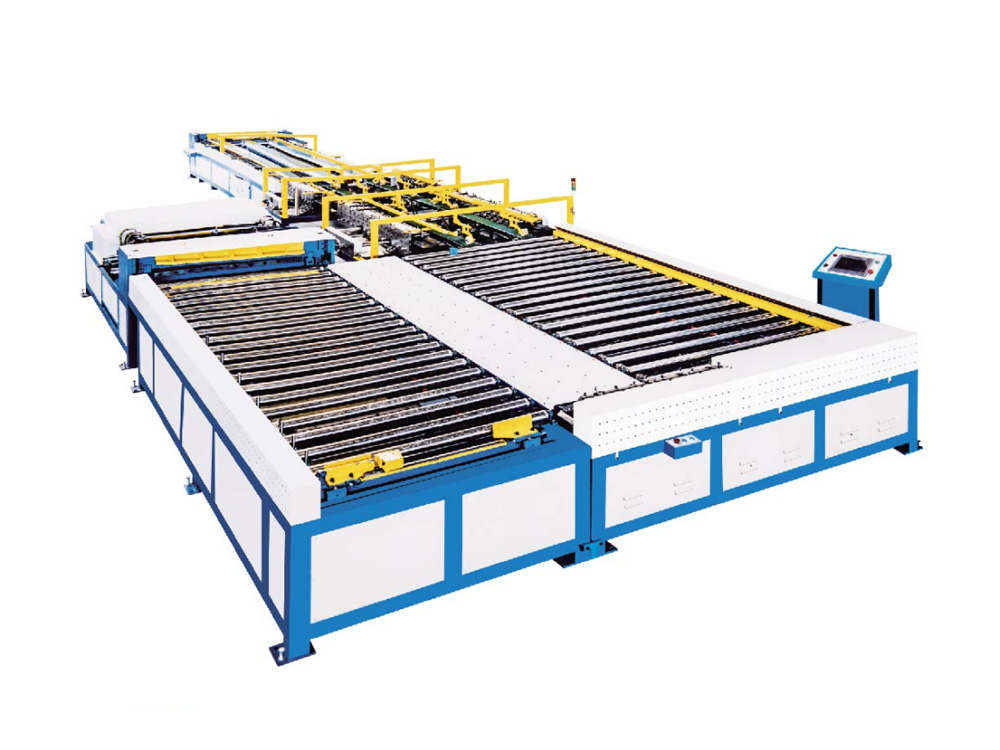

• U-Type Layout: The production line features a compact U-shape design, making installation convenient and minimizing the required workspace.

• High Production Capacity: Perfect for small to medium-sized manufacturers, it achieves a daily production of over 2,000 square meters of air ducts, with an automatic material-saving mode that prevents waste.

•


Additional Benefits:

• Rapid Production: L-type square ducts are produced in just 20-23 seconds per piece.

• Precision Engineering: New designs ensure excellent flange straightness without damaging the zinc coating of the ducts.

• Compact Footprint: Covers an area of 15 x 5 m.

•


Equipment Specifications:

1. Two Electric Feeding Machine Frames: Equipped with four internal-shoring material cores.

2. Leveling Compact Bar Equipment: Ensures accurate leveling of materials.

3. Four Hydraulic Pressure Attack Angle Molding Units: For optimal shaping.

4. Optional Reinforced Hole Molding: Available for added functionality.

5. Optional Flange Hole Molding: Two sets available for customization.

6. Hydraulic Shear Plate Equipment: Guarantees precise cutting.

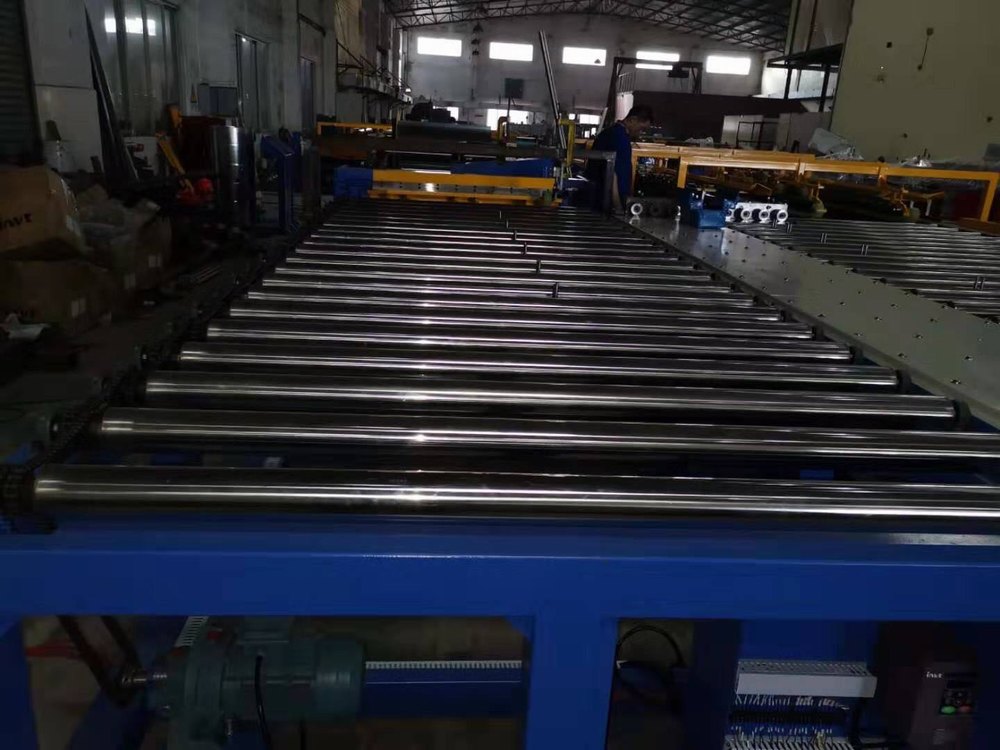

7. Feeding Platforms: Includes No. 1 and No. 2 platforms with aerodynamic pushing mechanical hands.

8. Fixed Nipping Machine: For consistent nipping performance.

9. Double Connection Flange Machines: Includes common plate and angle steel flange machines.

10. Digital Controlling System: Offers user-friendly operation.

11. Two Hydraulic Pressure Systems: Ensures smooth and efficient operation.

The Auto Square Air Duct Line 6 enhances your manufacturing capabilities with its innovative design and robust features. Contact us today to learn more or request a personalized quote!
