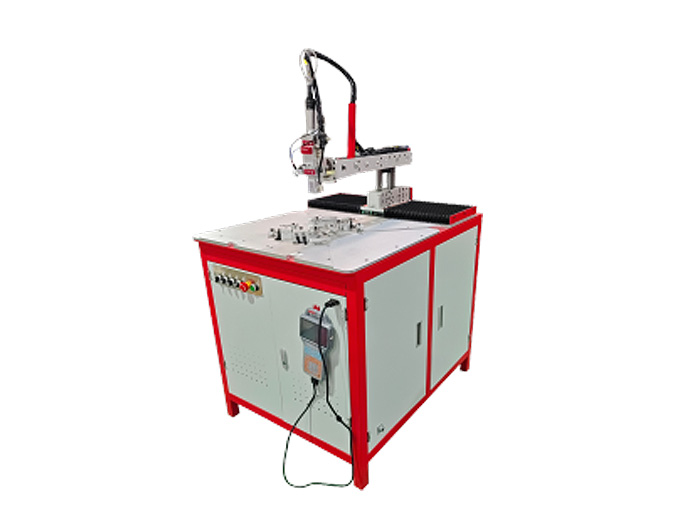

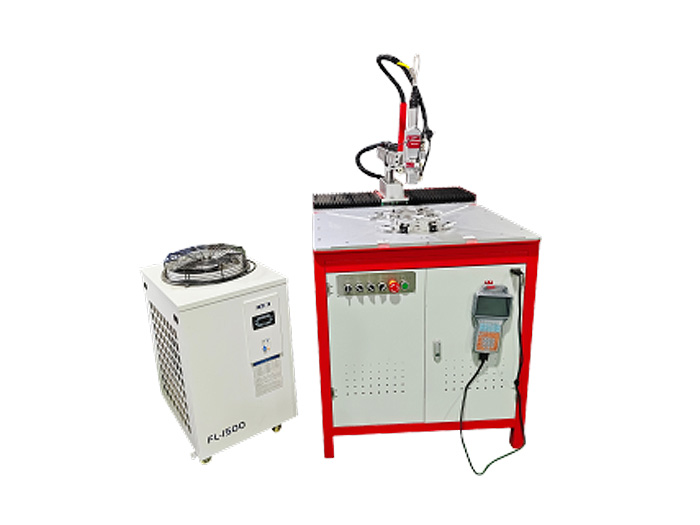

The principle of laser welding machine is to use the high-energy laser beam generated by laser as welding heat source, and realize the welding of metal materials through the guidance of welding head. It is an efficient and safe welding equipment. Welding aluminum alloy need not use protective gas, just connect air compressor.
The equipment is of double-station design, which can weld continuously and alternately, greatly improving the welding production efficiency.
PRODUCT FEATURES
When two people operate welding at the same time, the double station effectively reduces the waiting time of equipment, makes full use of manpower and improves the overall production efficiency.
The equipment can edit and save 100 welding procedures. According to different production tasks and profile specifications, the corresponding welding procedures can be selected to meet diversified production requirements.
Equipment type | Double Station (3-axis) |

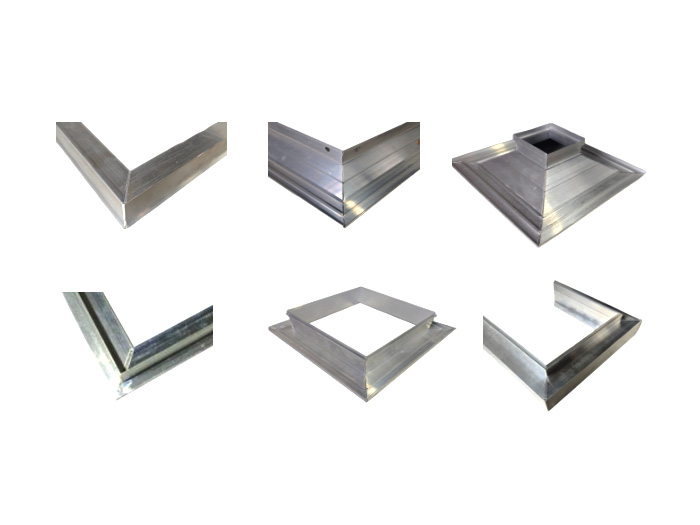

Equipment function | 45° Corner Joint Welding |
Worktable height | 870mm |
Welding joint type | Industrial-grade Welding Head |
Operating voltage | 220V |
Rated power | 3900W (Including Laser) |
Laser power | 1500W |
Air source pressure | 6 kg (0.6MPa) |
Equipment size | 1.4m long x 1m wide x 1.3m high |
