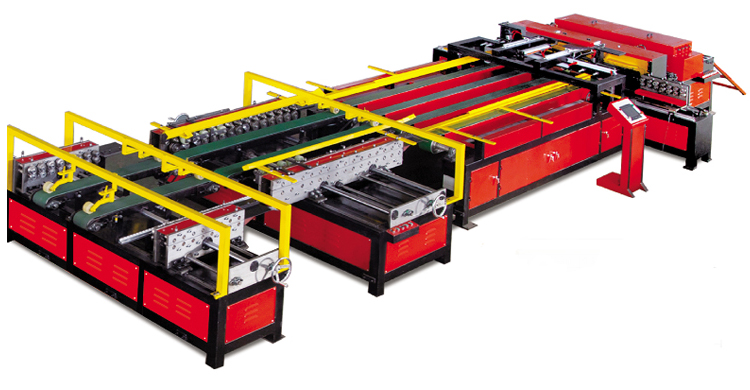

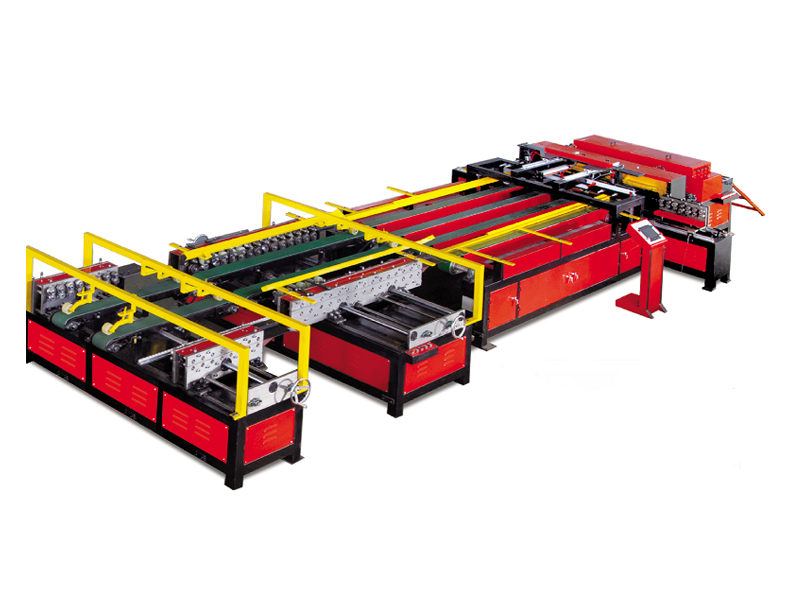

Auto rectangular duct machine line 4 consists of feeding material rack, leveling compacting bar equipment, punchtip, square opening molding hydraulic pressure shear equipment, displacement type nip machine, double machine connection common plate flange machine. This production line has a small covering area, flexible combinations and convenient movement, which is special suitable for field construction:its maximum feeding speed is 15 meters/minute, which can achieve fast production speed,high efficiency and intelligent production.
PARAMETERN
Auto rectangular duct machine line 4
1. Two sets of electric feeding machine frame (four internal-shoring material cores)
2. One suit of leveling compact bar equipment
3. Four suits of hydraulic pressure attack angle molding
4. One suit of hydraulic pressure shear plate equipment
5. One set of three-purpose displacement type nipping machine
6. One set of transition feeding platform
7. One set of double connection common plate flange machine (standard configuration)
8. One set of double connection angle steel flange(optional)
9. One suit of digital controlling system
10. One suit of hydraulic pressure system
