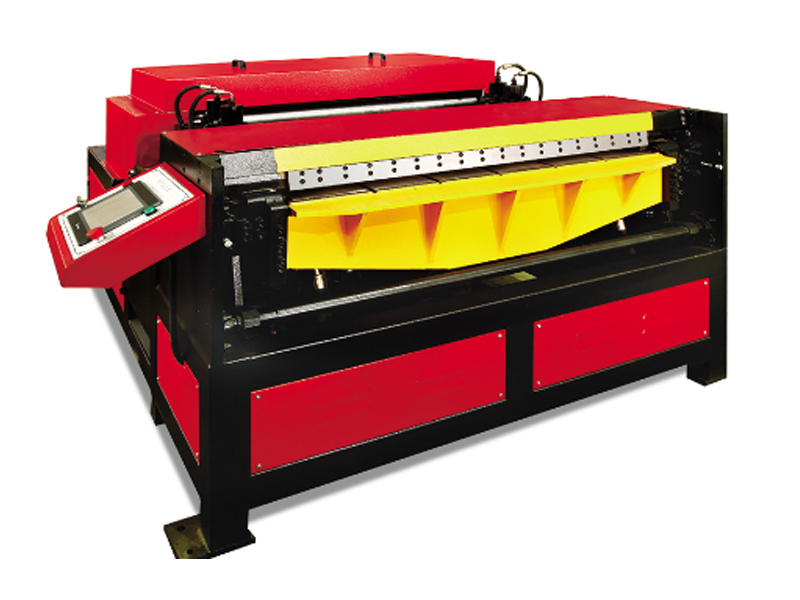

Auto rectangular duct machine line 3_Jiangsu Espe Mechanical Equipment Co.,Ltd.

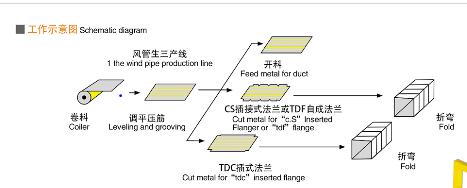

Auto rectangular duct machine line 3 is an ideal machine for making square air ducts, which improves the work efficiency and the aesthetics of the air duct. The auto duct machine line 3 can produce TDC and TDF flanges, consists of a metal feeding trame, leveing and grooving equipment, hydraulic punching square notch equipment, hydraulic cutter and The electrical control system uses a computer with a closed-loop and servo-system to increase the precision and reliability of the manufacture duct by using this system.

PARAMETERN

Auto rectangular duct machine line 3

1. Two sets of electric feeding machine frame (four internal-shoring material cores)
2. One suit of leveling compact bar equipment
3. Four suits of hydraulic pressure attack angle molding
4. One suit of hydraulic pressure shear plate equipment
5. One suit of hydraulic pressure equipment
6. One suit of digital controlling system
7. One suit of hydraulic pressure system

Technical parameter

Thickness width: 0. 5-1. 2mm Galvanied steel

Coiler width:1000-1250mm or 1220-1530mm

Weight width: ≤6000kg

Work speed: ≤15m/min

Length error: ±0. 5mm

Diagonal error: ±0. 8mm

Dimension: 10x1.8x1. 6m or 10x2.1x1. 6m

Weight: 5500kg or 6000kg

Motor :11.5kw
