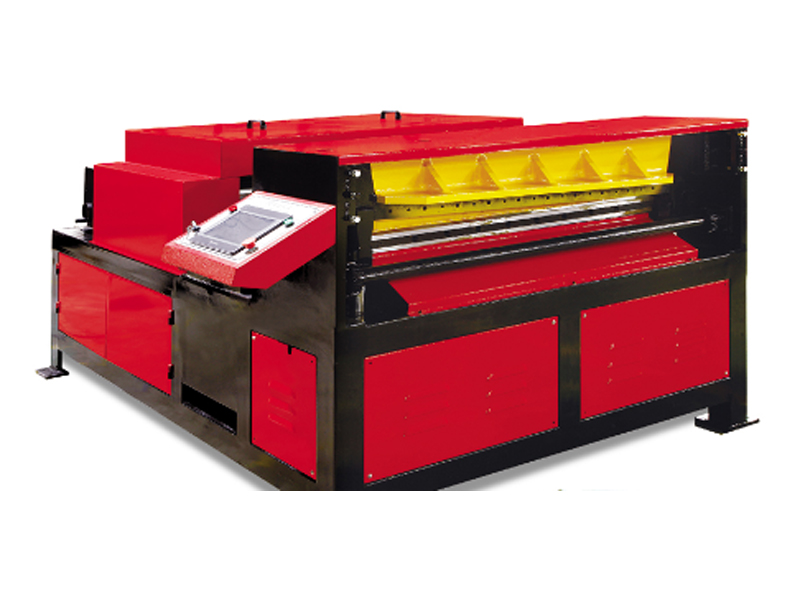

Auto rectangular duct machine line 2
1. One set of electric feeding machine frame (two internal-shoring material cores)
2. One suit of leveling compact bar equipment
3. Four suits of hydraulic pressure attack angle molding
4. One suit of hydraulic pressure shear plate equipment
5. One suit of digital controlling system
6. One suit of hydraulic pressure system
Auto rectangular duct machine line 2
1. Superior 45#steel roller with hard chrominum plating on surface
2. Ten rolls leveling
3. Film covering function is available
4. Heavy-type auto rectangular duct machine line 2 could shear ordinary plate (within 3mm) stainless steel (within 1. 5mm)
Technical arameter
Thickness width 0. 5-1. 2mm Galvanied steel
Coiler width 1000-1250mm or 1220-1530mm
Weight width: ≤6000kg
Work speed: ≤15m/min
Length error: ±0. 5mm
Diagonal error:±0. 8mm
Dimension: 7x1.8x1. 6m or 7x2.1x1. 6m
Weight：4500kg or 5000kg
Motor: 10kw
